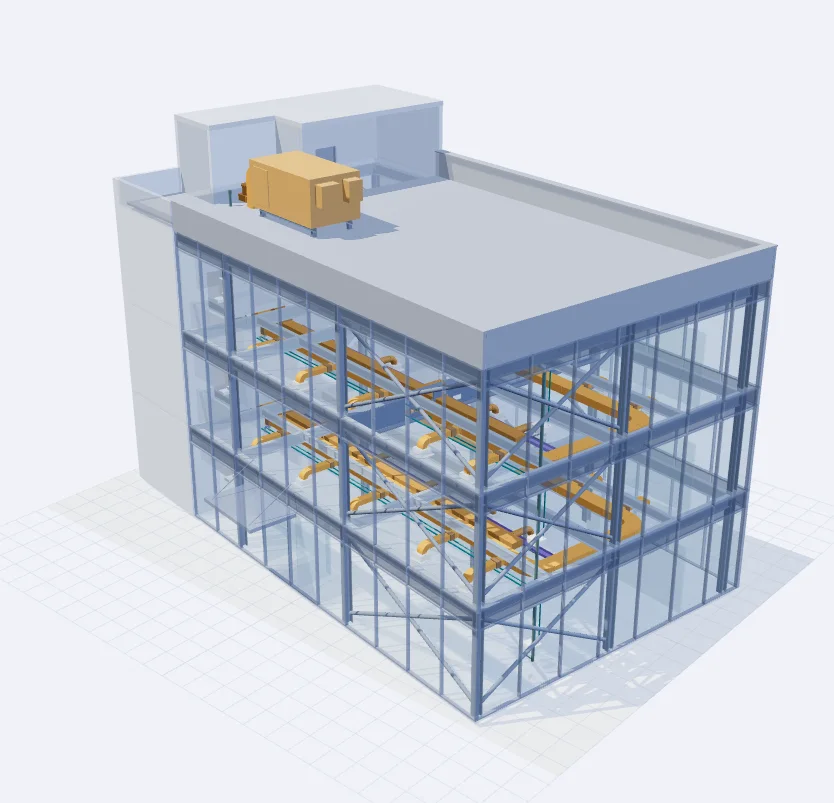

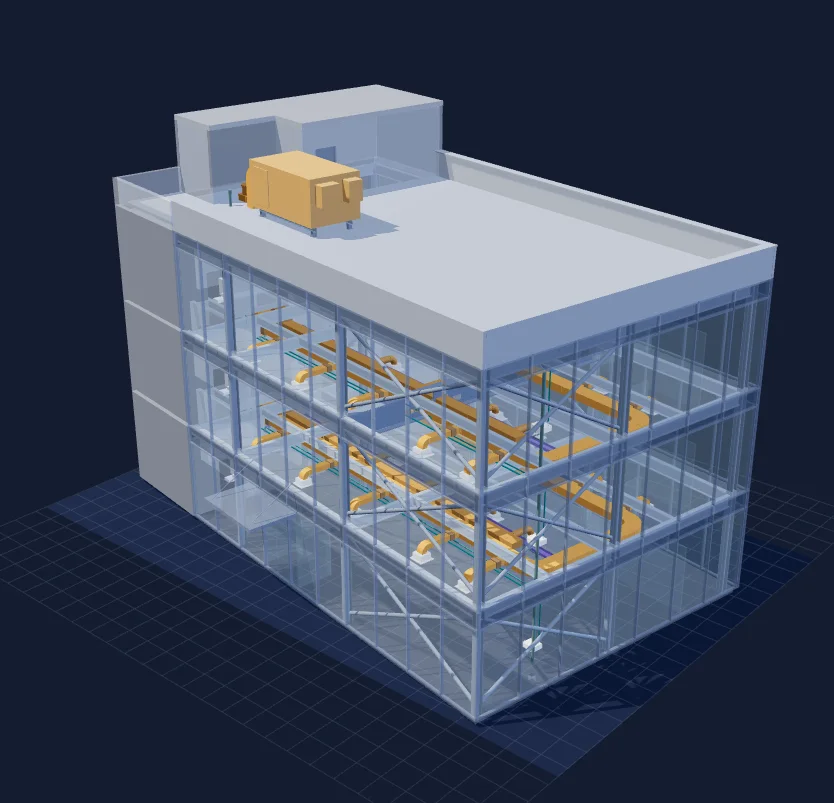

An architectural cutaway with coloured building servicesAn architectural cutaway with coloured building services
Northbank / Office buildingIllustrative model
Architecture + structure + services
#042 · Duct / beam
N ↗Perspective
5 disciplines. One shared picture.Navisworks coordination

Clash management for Navisworks

Know which clashes need your attention.

Bring your Navisworks clashes into ClashWise to organise the review, understand the issues and keep track of what needs doing.

Build a matrix from your model properties, review the proposed Navisworks tests, then publish the results for coordination.

Start free trial ↗Download plug-in

14-day trial · No card required · Starter included
Navisworks 2024 to 2027

Book a walkthrough ↗
Scroll to look inside

01 / Find your place

Find clashes by level and room.

Decide what needs reviewing first, using priorities and due dates. Move through the levels, then select a room to focus on the clashes there.

02 / Focus the review

Let guided review take you through the clashes.

Work through clashes at your own pace. Inspect the two elements, check their properties and bring back the surrounding model when you need context.

Clash #042Intersection
Supply duct intersects structural beam
Level 02Mechanical × Structure
Supply ductStructural beam

Select an element in the model to see its IFC class, dimensions and source.

Illustrative published clash · Geometry checked in Navisworks.

03 / Wise explanation

Understand why the clash matters.

Pause on a clash and Wise explains what is intersecting, why it matters and a practical next step, without holding up the viewer.

The explanation appears automatically. Use the quick rating to tell us when it helped.

04 / Coordination sessions

Keep everyone on the same model view, then draw together.

The host can present the complete live view, including context, clipping and display choices, while each person sees only authorised content. Freeze the view for shared markup, or split into parallel lanes.

Try a coordination sessionIllustrated example · Rev03
JL
Jamie is presentingMechanical lead · Clash #042
AMSP

Present the complete model view.

Keep everyone on the same camera, context, clipping, visibility and display choices. Each participant receives only the content they are authorised to see.

Present to everyone · 2 followingJamie controls the live model canvas.
#042 · Duct / beamThe whole team reviews the issue in context.
Shared markup · Frozen viewJamie and Alex draw on the same image.

Save the marked-up image with the session record.

Guest access, coverage & the meeting record ↓

05 / Close the loop

See what changed in the next revision.

Recheck the revised model in Navisworks. Update the clash set and keep the team’s coordination record in step.

Navisworks
Northbank_Coordination_Rev04.nwfRechecked in Navisworks
✓
#042 · Intersection clearedResolved after the Navisworks recheck

Review the changes before syncing selected fields.
The illustrated route shows the coordinated outcome.

The coordination workspace

Work through the published clash set.

Work through a clash list, ask Wise for help and inspect the surrounding model. Give each issue a name your team understands.

Northbank / Project coordinationExample project

The work, after the review

Northbank Rev04 · #042, #057 and #061 resolved. One issue still needs attention.

Open the coordination room

Group by model properties, save a useful view and bulk-edit a focused selection. Take the review into 3D or a coordination session.

ClashWhat needs attentionPriorityOwnerStatus
#042Supply duct intersects structural beamLevel 02 · Grid C/4HighJamie LewisResolved
#057Cable tray crosses structural beamLevel 02 · CorridorMediumAlex MorganResolved
#061Pipe crosses structural beamLevel 02 · Service zoneMediumSam PatelResolved
#078Extract duct intersects ceiling bulkheadLevel 02 · Grid C/2HighUnassignedOpen
4 issues in this viewOther issues illustrate work beyond the model view above.

Use the matrix to prepare tests and review their results.

Start from a new federation or an existing clash set. Review the rules, then browse published clashes by discipline or class.

Explore the clash matrix
How #042 reached this point View the earlier Wise recommendation +

Earlier in the review: the team assessed the original intersection and agreed a revised route. The current Rev04 geometry is resolved.

Your project standard

Give the analysis
a shared starting point.

Your clash matrix gives Wise the project’s coordination context. AI analyses the clash against it and recommends the priority, status and contact.

Northbank matrix / Example entryMechanical × Structure

Escalate conflicts affecting a primary structural member. The mechanical lead should review a revised service route with the structural team.

Try the free clash matrix builder ↗
✳Earlier Wise recommendationClash #042
Priority
High
Status
In review
Contact
Jamie Lewis

Why this recommendation? The duct intersects a primary beam. The example matrix calls for a service-route review, with Jamie as the mechanical contact.

Review the reasoning, then accept or edit the suggested fields in your workspace.

Historical step · Illustrative AI result

Meet Wise

Ask Wise about your clashes.

Find the right clashes, update assignments, build a clash matrix or run a coordination session. Wise helps you work with the project you already know.

Actions stay visible in your workspace. Review the results, make changes and keep the decision in your team’s hands.

With you in the 3D viewer and docked in Navisworks.See Wise in Navisworks ↗
ClashWise WiseInteractive example
Show me the mechanical clashes on Level 02.
✳

There are two mechanical issues here. #042 is resolved; #078 needs an owner and a review.

#042Supply duct / structural beamResolved
#078Extract duct / ceiling bulkheadOpen
Northbank · Level 02Context stays with the conversation
ClashWise / 3D viewerProduct capture · Example project

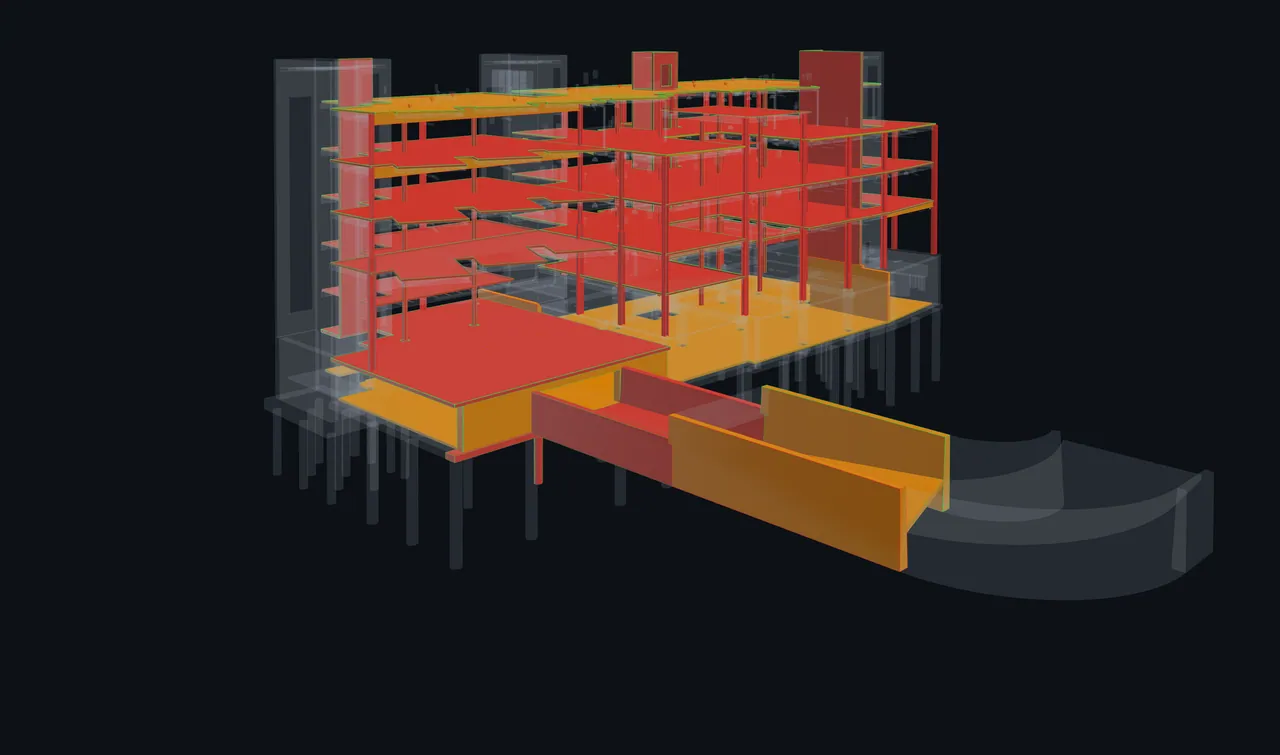

ClashWise model coloured by priority, highlighting selected issues against muted building context
What needs attention first? Colour by priority to focus the coordination review.

These viewer captures show a separate example project.

After the model review

Keep the evidence for the next review.

Save the camera and model visibility, keep measurements and resume your review. Saved views open against the current model and warn you when geometry has changed.

Choose the viewpoints, annotations and measurements to include in a BCF review package. Your team can carry that context into the receiving tool, where support for each item may vary.

Explore the viewer and saved context ↗

See what BCF carries

The work starts with understanding

Titles that say
what actually clashed.

Replace generic names with a sentence your team can understand. Include the elements, discipline and location in your working language.

Generate local titles in eleven languages and six naming standards in the Navisworks plug-in. After downloading the AI model, you can work offline.

Explore local AI title generation
Choose how your titles are written +

Basic, Detailed, Component ID, By Discipline, AI Preferred or Mixed. Write to the title, description or comments, with group-aware titles for grouped clashes.

Set up Property Mapping for your source-file pattern first, then reuse that mapping on other models.

Explore Property Mapping ↗
Before

Clash042

✳With ClashWise

Supply duct intersects structural beam, Level 02, Grid C/4

Illustrative title in three of the supported languages.

Bring the right people together

Keep a record of the coordination meeting.

Review together, share a focused view and carry the outcome back into your project.

Keep track of the clashes each lane covers, give guests the access they need and record the decisions for the next review.

Try the session in 3D ↑
Northbank / Follow-up review · Rev04Example session
Try the two perspectives
Host overview · Follow every lane and bring shared issues back to the room.
Session active · Presenting to everyone

Everyone has a part to play.

JLAMSP3 participants
MechanicalJamie
#042 · Level 02

Supply duct / structural beam

Rev04 routes the duct through its web opening.

Resolved · Rev04
#078 · Level 02

Extract duct / ceiling bulkhead

Open · Awaiting assignment
ElectricalAlex
#057 · Level 02

Cable tray / structural beam

Rev04 lifts the tray into its web opening. Confirm the route.

Resolved · Rev04
PlumbingSam
#061 · Level 02

Pipe / structural beam

Rev04 lifts the pipe into its web opening. Confirm the route.

Resolved · Rev04
4issues in lanes
0outside a lane
3recorded resolutions · #042 #057 #061

Keep coverage visible. Regroup when a decision needs more than one discipline.

✓ Changes recorded as you workDecisions + action items + minutes
01 / THE SHARED DETAIL

Keep the room together.

Present the complete live model view when everyone needs one reference. Freeze that view to draw on the same image together and save the flattened result to the session record.

02 / THE WHOLE WORKLIST

Keep unfinished work visible.

Create lanes by contact, level, discipline or other clash properties. Track coverage and unassigned issues; choose which unfinished work becomes a follow-up action.

03 / A USEFUL RECORD

Let the record travel.

The active session records changes to status, priority, contact and due date. Save decisions and action items, then review the minutes Wise drafts from that record before exporting a branded PDF.

Explore coordination sessions ↗

Keep the coordination connected

Export the results of your review.

Autodesk Navisworks

Back into Navisworks.

Review the Analyzed Clash Summary, choose the fields to sync and send status, priority, contact and comments back to Navisworks.

Priority sync requires Navisworks 2026 or later. You choose how fields map.

Excel
CSV
BCF 2.1

Export to Excel, CSV or BCF.

Export a whole set or a filtered selection. BCF 2.1 carries the topic, comments, snapshot and 3D viewpoint into the next part of your workflow.

Share reports and hand over issues in the formats your team uses.

Connect your AI tools.

Use an MCP-compatible AI client to explore coordinated clashes while ClashWise controls access and available actions.

Explore MCP connections

Plans for the way you coordinate

Start with your workflow.
Grow with your team.

Choose local Navisworks tools with Starter, a shared coordination workspace with Pro, or multiple projects and company standards with Business.

All prices in US dollars.

For the model work

Starter

Local titles, groups, search sets and clash-test tools.

US$19

Flat subscription / month

Billed monthly.

Start free trial

Your local plug-in toolkit

  • Unlimited local AI clash titles
  • 11 languages, six naming standards
  • Group clashes by model properties
  • Search sets and clash-test generation
Work locally, including offline.Download the AI model first for offline title generation.
For the coordination team

Pro

Recommended

Prepare tests and review published clashes with one coordination team.

US$59

Per editor seat / month

Billed monthly.

Start free trial

Everything in Starter, plus

  • Coordination Setup, AI analysis and matrices
  • 3D review, insights and Navisworks sync
  • Live sessions, host presentation, shared markup, parallel lanes and guests
  • Wise, MCP, sharing and exports

300Wise actions / editor / month

100Guest passes / organisation / month

For multiple projects

Business

Manage several projects with separate access and shared coordination standards.

US$99

Per editor seat / month

3 seats minimum · from US$297 / month.

Start free trial

Everything in Pro, plus

  • Multiple project workspaces
  • Project access, admins and member roles
  • Shared company-standard matrix library
  • Organisation member management

1,000Wise actions / editor / month

1,000Guest passes / organisation / month

14 days to try it. No credit card required. Starter is included. Cancel in the app at any time.

Compare all plan featuresNavisworks tools, coordination, Wise and team controls

Choose a feature to see the details.

Which plan would you like to compare?
Features and allowances included in Starter, Pro and Business. Guest passes are per organisation; Wise actions are per editor seat.
What’s includedStarterUS$19 / month, flatProUS$59 / editor / monthBusinessUS$99 / editor / month
Navisworks tools & 3D review
Local AI clash titles

Generate titles on your machine in 11 languages and six naming standards. Work offline after the AI model download.

✓✓✓
Group clashes

Organise related clashes by level, system, zone or another object property for review and handoff.

✓✓✓
Search sets & clash tests

Build reusable search sets from object properties, or create selection sets using computed grids and levels. Prepare A-versus-B or set-versus-set tests and run them in Navisworks Clash Detective.

✓✓✓
Coordination Setup

Scan your models, map their properties and connect a coordination matrix. Preview the search sets and tests before installing them in Navisworks. Requires an active or trial Pro, Business or Enterprise organisation.

—✓✓
3D clash model viewer

Focus a clash in 3D or find its location in Plan. Prepared, aligned IFC spaces provide rooms and levels; IFC models also support element inspection and visibility filters. Isolate, section and measure, with ghosted context, markups and snapshots. Use source appearance, wireframe, X-ray or exploded views, and colour by priority, status, severity, age or cluster.

—✓✓
Coordination sessions
Live coordination sessions

Keep everyone on the same authorised live model view, including context, clipping and display choices. Freeze the rendered view to draw together and save the flattened marked-up image to the session record. Wise drafts minutes with branded PDF export.

—✓✓
Everyone in the model at once

Follow voluntarily or let the host keep every connection on one complete model view. Hand over control, point in 3D, look around independently and return to the shared view.

—✓✓
People per live session

Host, members and guests count together. Invited guests do not need a paid editor seat.

—15people25people
Live sessions at once per organisation

A session counts only while someone is connected. Starter cannot host, but may join a valid invitation.

—1per organisation3per organisation
Parallel lanes & regroup

Divide clashes by contact, level, discipline or another property. Track lane coverage and unassigned issues, flag questions and regroup on shared decisions.

—✓✓
Guest session passes

Invite contacts without an account, with access defined by their pass. Allowances are per organisation, per calendar month. Up to 10 guest-assigned lanes may be active in a session; this lane rule is separate from the people limit.

—100per organisation / month1,000per organisation / month
Clash management & Wise
Matrix-guided AI analysis

Analyse clashes against your project matrix to recommend priority, status and responsible contacts. Review the recommendations and retain your team’s edits.

—✓✓
Browser matrix builder & update modes

Build coordination matrices in the browser. Add classes, Sync or Regenerate as models change while preserving user-assigned priorities and contacts.

—✓✓
Filters, bulk updates & saved views

Filter clashes by model properties and bulk-edit a focused selection. Save viewer context and measurements, or resume a personal review tour. Saved views use the current model; changed geometry may need another review.

—✓✓
Insights & Navisworks sync

Follow clash progress in dashboards and sync selected fields back to Navisworks. Review changes before applying them; priority sync requires Navisworks 2026 or later.

—✓✓
Password-protected sharing

Share a read-only 3D scene or insights view with an optional password and an expiry you control.

—✓✓
Wise, your AI assistant

Ask about a clash set in the browser, 3D viewer or Navisworks. Retitle clashes, get explanations and request coordination actions.

—✓✓
Wise AI actions

Monthly actions are pooled across your organisation’s editor seats, for assistant chat, viewer questions and clash explanations. The trial includes 10 Wise actions per user per day.

—300per editor / month1,000per editor / month
Governed MCP connections

Connect compatible AI clients and IDEs through OAuth Connected Apps. Your organisation controls access, member permissions and the clash edits each connection can make.

—✓✓
Tool activity & audit trail

Review tool calls from Wise, Navisworks and connected MCP clients at user and organisation level.

—✓✓
Excel, CSV & BCF 2.1 export

Export the whole clash set or a filtered selection. BCF carries topics, comments, snapshots and viewpoints. Member review packages can also include selected saved views, annotations and measurements; support varies in the receiving tool.

—✓✓
Teams & standards
Multiple project workspaces

Keep separate project workspaces within your organisation. Pro gives one coordination team a shared workspace; Business supports multiple projects.

——✓
Project-scoped visibility

Keep client and project data within defined project access boundaries.

——✓
Per-project admins & member roles

Give each project its own administrators and member roles.

——✓
Company-standard matrix library

Publish and clone shared company matrices so projects work from the same coordination standards.

——✓
Organisation member management

Manage membership across the organisation as your teams and project portfolio grow.

——✓

Wise actions are pooled across your organisation’s editor seats. Guest passes are counted per organisation, per calendar month. Guests need no paid editor seat and count within the plan’s people-per-session limit. Up to 10 guest-assigned lanes may be active in a session; this lane rule is separate from the people limit. These monthly allowances stay the same with yearly billing. The trial includes 10 Wise actions per user per day.

Coordinating a larger organisation?

Need 25+ seats, SSO, on-prem AI or custom session capacity? Enterprise limits are explicitly configured and validated for your deployment.

Let’s talk
View plans and pricingAlready have an account? Sign in

A few practical questions

Ready for your
next clash review.

What to expect when you bring ClashWise into your Navisworks workflow.

Visit the help centre ↗
How does ClashWise fit into Navisworks?+

Run your clash tests in Navisworks and publish the results through the ClashWise plug-in. Name and analyse the clashes, coordinate with your team, then review and sync selected status, priority, contact and comment changes back to Navisworks.

Which Navisworks versions can I use?+

The plug-in supports Navisworks 2024 to 2027. Clash tests run in Navisworks Manage’s Clash Detective. Priority sync requires Navisworks 2026 or later. See download and compatibility details.

Can AI title generation run offline?+

Yes. After a one-time AI model download, local title generation runs on your machine. Published clash management, Wise, collaboration and sync use the cloud and need a connection. Read about local AI.

Do I need to set up Property Mapping?+

Yes, once for each source-file pattern. Map element names, IDs, categories, levels and disciplines, then save the mapping for reuse. This supports both title generation and clash management. See Property Mapping.

Can I edit the AI’s recommendations?+

Yes. You can edit generated titles, owners and priorities. Your edits are retained during re-analysis, with a history of who changed what and when. Wise can also apply actions you request; those changes remain visible in the workspace.

What happens when I run the next clash test?+

Re-run Clash Detective in Navisworks to check the revised model. Existing clashes keep their identities; newly detected clashes appear as new entries. Use Update Clash Set or Run & Publish to send the latest results to the existing destination, then review the coordination changes before syncing.

Can people outside our team participate?+

Share a read-only 3D scene with selected clashes, an expiry and an optional password. For a live session, invite guests without an account. Their pass defines their session or lane access and available actions. Guest allowances depend on your plan.

Can I try it before choosing a plan?+

Start a 14-day trial without a credit card; Starter is included. You can also book a walkthrough. Starter covers local plug-in tools; Pro and Business add cloud coordination, billed per editor seat. Compare plans and pricing.

Where can I review security and privacy?+

Local title generation stays on your machine. Published clash sets and uploaded context models use ClashWise’s cloud workspace. Read the security information, privacy policy and data processing agreement for the details.

Built for the people bringing it all together

Try ClashWise on your own project.

Publish a clash set, review it with your team and sync the agreed changes back to Navisworks.

Start free trial ↗14-day free trial · No card requiredBook a walkthrough ↗
